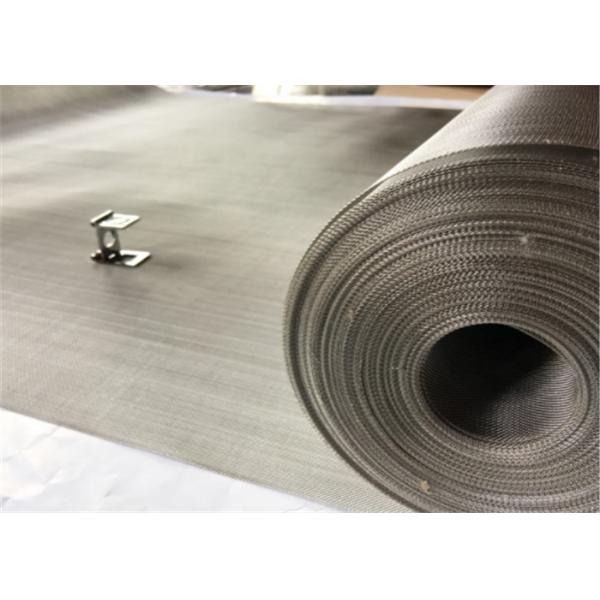

1.5m Width Plain Weave Stainless Steel Woven Wire Mesh 304 316 20mesh

Brand Name : H&F

Model Number : SSWM-002

Certification : ISO-9001

Place of Origin : Hebei, China

MOQ : 50 Square Meters

Price : USD3.55~USD6.88

Payment Terms : T/T, Western Union

Supply Ability : 10000 sqm per week

Delivery Time : According to order quantity

Packaging Details : Inside plastic film and outside wooden box

Product Name : Plain Weave Stainless Steel Wire Mesh

Material : SS304 316

Wire Diameter : 0.02-3.0mm

Mesh Count : 5-500 mesh

Roll Width : 1.5m

Length : 20m, 30m, etc

Woven Type : Plain weave

Usage : Chemical, Pharmaceuticals

Feature : Anti-rust

Mesh Size : 0.02mm-50mm

Contact Now

1.5m Width Plain Weave 304 316 Stainless Steel Wire Mesh

Product Description

Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves.

In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread

crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes

under the warp threads that its neighbor went over, and vice versa.

Product Specifications

Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch	wire diameter(mm)	aperture(mm)	-	mesh/inch	wire diameter(mm)	aperture(mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.25	0.0385

Product Features

1) With excellent performance on acid-resisting, alkali-resisting and corrosion resisting.

2) With high intensity, abrasion resistant, ductility. High quality and Long service life.

3) High temperature oxidation resistance. Can filter in high temperature environment.

4) Cold processing, Diversify the usage of Metal Wire mesh.

5) Do not needsurface treatment, maintenance free.

Product Applications

Stainless steel wire mesh has been widely used in chemical, petrochemical and oilexploration, transportation,

nuclear industry, energy, textile, aerospace, electronics, food pharmaceutical paper and other industrial sectors.

in certain areas may become an indispensable substituted metal material. In addition, the stainless steel wire mesh

has decorative and easy to clean and antbacterial properties, in the consumer sector it has been widely used,

such as construction and decoration, kitchenutensils, cutlery, metal and other civil.

Product Show

Packaging

Our Company

Product Tags:

1.5m Width Plain Weave Stainless Steel Woven Wire Mesh 304 316 20mesh Images
