30 Years lifespan Outdoor landscape galvanized stone filled welded gabion box
Stone filled welded gabion box description:
Stone filled welded gabion box are wire container made of Welded wire mesh panel.
Stone filled welded gabion box are engineered retaining structures designed as mass gravity walls to hold
back earth or other solid materials with out overturning, sliding or foundation failure.
All designed, Stone filled welded gabion box should be checked by a suitably qualified structural engineer on
site prior to construction.
The modular structure of these walls allows for variation in section to be accommodated as the height increases.
The inherent strength of the units ensures structural and dimensional stability whilst a degree of flexibility
accommodates ground movement and settlement where necessary.
Stone filled welded gabion box specification list:
| Name | Welded Gabion / Gabion Cage / Gabion Box / Gabion Basket |
| Material | Low carbon steel wire |
| Wire Diameter | 3.0mm , 3.5mm , 4.0mm, or according to customer's requirements |
| Mesh Hole | 50 × 50 mm, 50 × 100 mm, 75 × 75 mm |
| Surface finish | Galvanized, Galfan Coated, Hot Dipped Galvanized |
| Color | Silver |

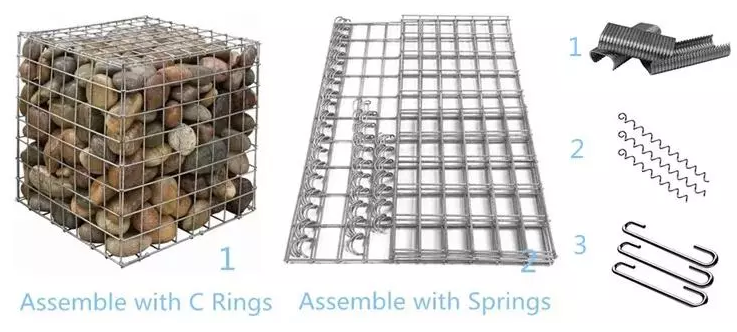

| Connect way | Spiral wire,U clip,C ring,lacing wire,hook |
| Application | Garden building, gabion wall,gabion fence |
| Notes:Welded Gabion comes in different sizes which can be customized |
Stone filled welded gabion box export different size:
Stone filled welded gabion box different type:
Stone filled welded gabion box including all parts details:
Stone filled welded gabion box good advantages:
1. Easy to Install
Align wire mesh with the spiral pole to form a single structure, the pole will fall down automatically by itself;
no tools necessary.
2. High Quality Material
Made of galvanized steel wire, resistant to rust and corrosion; with grids evenly spaced at 5 x 10 cm and
hooks to fasten and keep the original shape, gabion is solid and durable.
3. Cost Effective
Replace traditional walls to save cost and time, easy to operate and has an appealing look.
Stone filled welded gabion box How to install?
Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing,
and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
Step 4. Welded gabion box filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the up
Install steps Finish
Stone filled welded gabion box packing way:
1. Single Package: one set will be packed in one carton, this kind of package usually used for retail.
2. Large Quantity: Will be use pallet, this package can save space, mainly for project, construction site.
Stone filled welded gabion box Application:
- retaining wall structure,
- rock fall
- soil protection
- form mass gravity structures
- garden to design different fences
- decorative support for climbing plants
- surround and decorate ponds or plant
